Clarify the battery condition first
New, used, damaged, defective or critically defective batteries require different review and packaging paths. Use our App to get guidance on battery classification.
LOKI-Pack

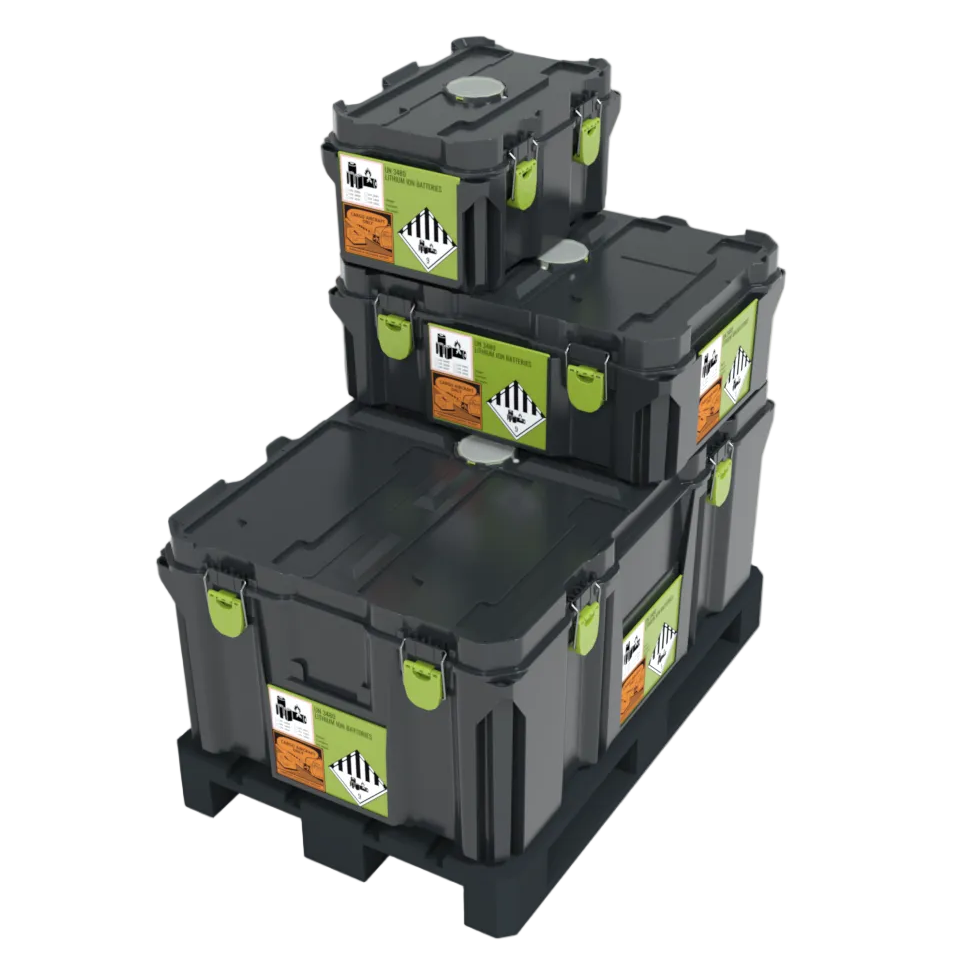

Modular battery packaging for transport and storage
LOKI-Pack is configured around the battery condition, format, weight, energy content, use case and transport route. The result is a packaging solution matched to the specific battery, process and required evidence.
Matched to the battery and process

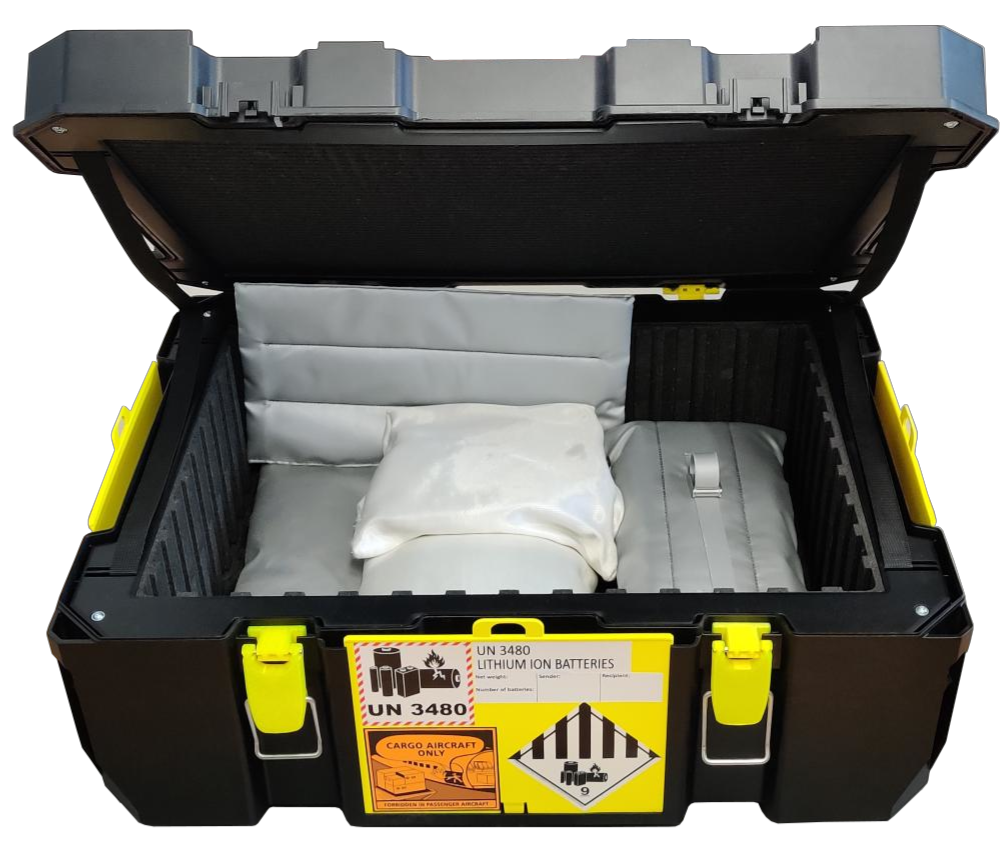

Inlays, accessories and handling details are matched to battery format, dimensions, weight, quantity and use case.
Safe up to 60% per shipment
Passive cooling material increases permitted battery energy by 230%. Robust design allows +100% effective payload. Digital integration reduces process and overhead costs.
Battery condition
The battery condition determines the next step.
LOKI-Pack uses a traffic-light logic for battery inquiries: green for the standard path, yellow for the universal path and red for the quarantine path. The route depends on battery condition, available evidence and the relevant ADR packing instruction.
Green batteries
Low risk | Standard packaging path
For new and tested batteries with UN 38.3 testing and an available test summary. Required details include battery type, UN number, format, dimensions, weight, energy content, quantity and planned logistics process.
Recommended route
LOKI-Pack Standard | ADR P903
Yellow batteries
Medium risk | Universal packaging path
For take-back, recycling, prototypes or used, damaged or defective batteries that cannot be assigned to the green standard path. Required details include battery type, UN number where known, condition, damage pattern, dimensions, weight, energy content, quantity, packaging objective and planned transport or storage process.
Recommended route
LOKI-Pack Universal | ADR P908 / P909 / P910
Red batteries
High risk | Quarantine packaging path
For critically defective batteries, batteries with increased risk, critical warning signs or unclear transport suitability. The inquiry must include battery energy, battery type, cell/module/pack format, dimensions, weight, condition, damage pattern, known temperature or reaction abnormalities, quantity and planned handling.
Recommended route
LOKI-Pack Safety | ADR P911

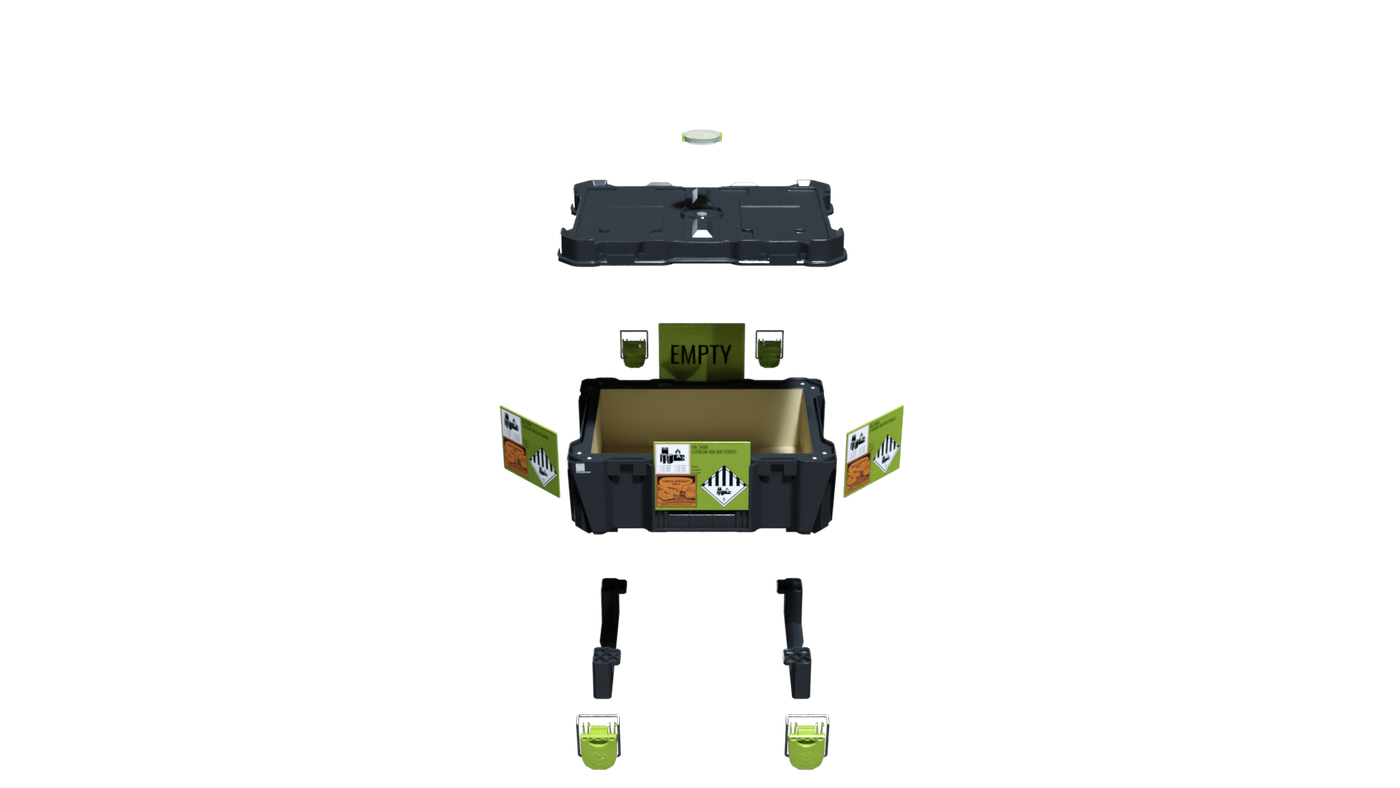

Configuration
Four building blocks define the LOKI-Pack configuration.
The appropriate LOKI-Pack solution is built from size, inlay, labeling and optional digital integration. The suitable combination depends on battery condition, dimensions, weight, energy content, quantity, packing instruction and planned transport or storage process.
Size
S, M or L
The appropriate size is selected based on battery format, outer dimensions, weight, quantity, inlay setup and handling process. Specific internal and external dimensions are published only for approved LOKI-Pack variants.
Inlay
Standard, Universal or Safety
The inlay follows the battery condition and the relevant packing instruction: Standard for green batteries, Universal for yellow batteries and Safety for red batteries. It supports positioning, spacing, fixation and handling within the reviewed packaging configuration.
Labeling
Compliant labels and documentation
Labeling depends on the battery, condition, UN number, transport route and applicable regulation. Our removable label plates enables flexible labeling and compliant empty returns, where the label plate can just be turned around.
LOKI-Track
Digital integration
LOKI-Track can extend LOKI-Pack processes with asset information, status data, document access or guided workflows. Digital integration does not replace dangerous-goods assessment or legally responsible approval.

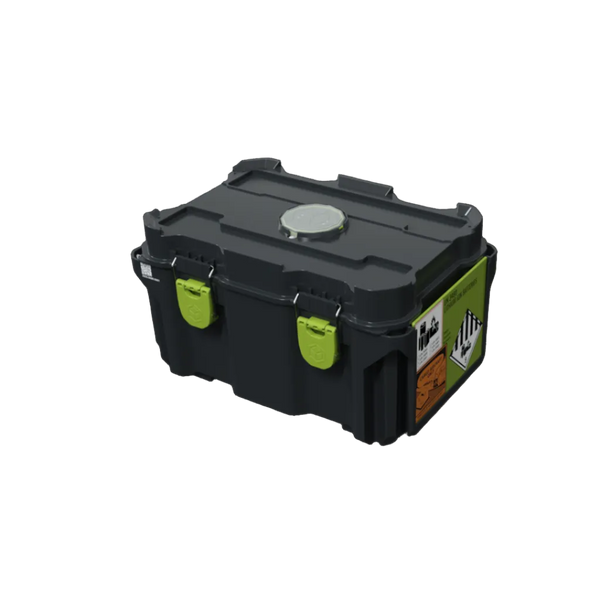

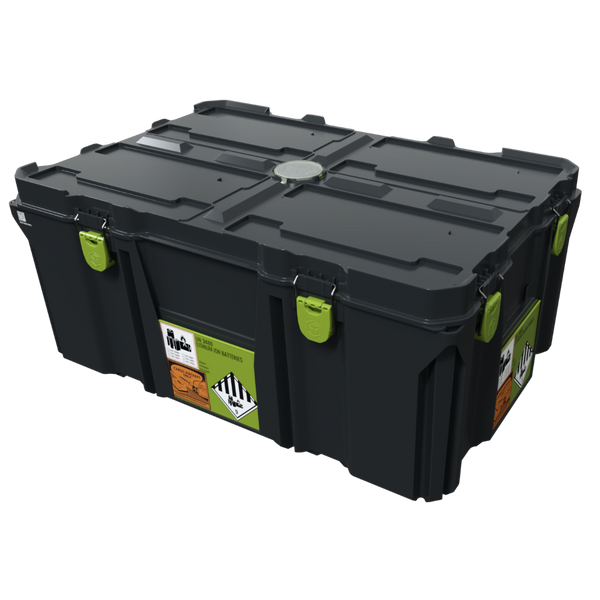

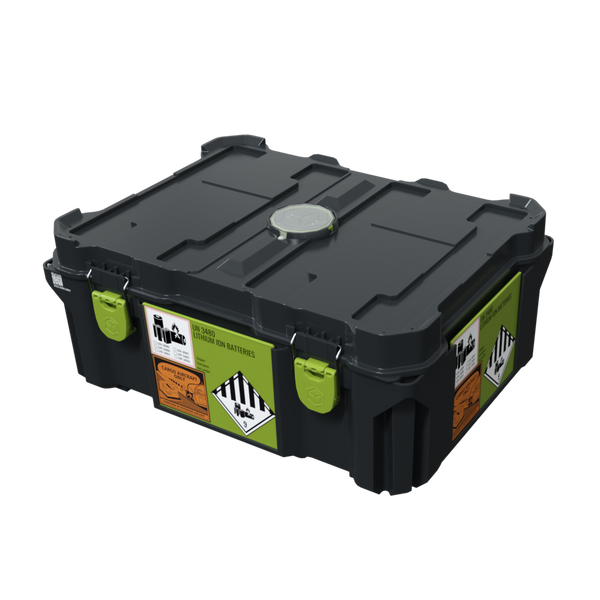

LOKI-Pack specifications
Product data for LOKI-Pack variants
| Specification | S | M | L |
|---|---|---|---|
| Product image |
|
|
|
| UN code* | UN 4H2/X87 | UN 4H2/X168 | UN 4H2/X340 |
| Standard / Individual / Universal | |||
| Outer dimensions | 600 x 400 x 340 mm | 800 x 600 x 340 mm | 1200 x 800 x 530 mm |
| Inner dimensions | 442 x 242 x 216 mm | 642 x 442 x 216 mm | 1042 x 642 x 406 mm |
| Weight net | 11 kg | 17 kg | 38 kg |
| Material | PC/ABS and EPP | PC/ABS and EPP | PC/ABS and EPP |
| Max. payload* | 76 kg | 151 kg | 302 kg |
| Safety | |||
| Outer dimensions | 600 x 400 x 340 mm | 800 x 600 x 340 mm | 1200 x 800 x 530 mm |
| Inner dimensions | 441 x 241 x 225 mm | 641 x 441 x 225 mm | 1041 x 641 x 415 mm |
| Weight net | 17 kg | 28 kg | 60 kg |
| Material | PC/ABS and flame-retardant materials | PC/ABS and flame-retardant materials | PC/ABS and flame-retardant materials |
| Max. payload* | 70 kg | 140 kg | 280 kg |
| Planned battery capacity* | 10000 Wh | 20000 Wh | 60000 Wh |
* Subject to official certification

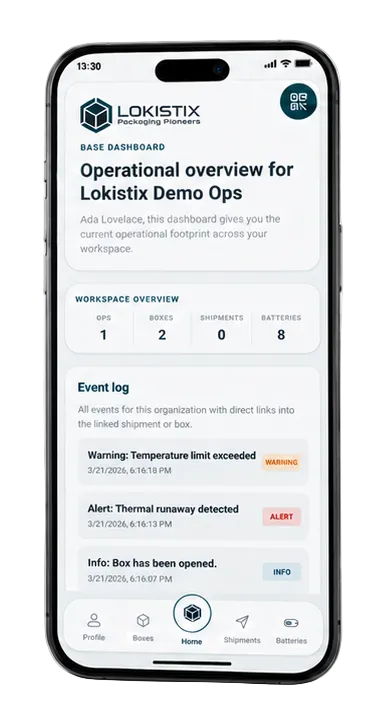

LOKI-Track integration
Digital context for packaging, assets and documentation
LOKI-Track can extend LOKI-Pack processes with a digital layer for asset identification, condition information, status updates, document access and guided workflows. The exact data, sensors and responsibilities depend on the application and approved setup.
01
Condition data
Track temperature, shock and position in real-time.
02
Events and alerts
Get notified in case of emergency or when limits are exceeded.
03
Workflow guidance
Use guided workflows for classification and packaging.
04
Assets and documents
Manage your assets and assign internal or external documents.
LOKI-Pack downloads
Technical documents
Approved downloads pending
Instructions, safety information and evidence documents will be added after approval.
