Tailored for defined production steps.
LOKI-TES is developed around the physical interfaces, handling sequence and operating context of an agreed battery flow.
LOKI-TES
Tailored engineering solutions for battery production flows
LOKI-TES develops application-specific physical product solutions for cell, module and pack production flows. Each project is shaped around the battery format, process step, handling requirements and site context.
From production context to a tailored solution.
Share the requirements that matter at your site so the appropriate product concept and project scope can be reviewed.
Safe up to 25% per shipment
Tailored packaging design increases storage capacity by up to 30%. Multi-layer tray design enables 20% faster loading/repacking. Digital integration reduces process and overhead costs.
Where LOKI-TES fits
Built around the interfaces in your battery flow.
LOKI-TES is developed as a tailored physical product for defined production and logistics steps. The final configuration depends on the battery format, process requirements and site context.
Cell manufacturing to module integration
Define a handling and protection concept around the steps between cell production and module integration.
Module production to pack integration
Align the solution with the dimensions, interfaces and handling steps of the module-to-pack flow.
Repeatable industrial handling
Capture throughput, units per carrier and manual or automated handling requirements for a defined production step.
Line rejects and production scrap
Include defined routes for rejected, damaged or scrap material when those flows are part of the project brief.
Project pathway
Move from production context to an engineered packaging solution.
Start with the process information that defines the use case. The development sequence, validation scope and handover criteria are agreed for the individual project.
Definition of the flow
Share the production step, battery format, volumes and handling environment.
Review of constraints
Review geometry, weight, cleanliness, automation and internal or external transport requirements.
Packaging development
We translate the agreed requirements into a tailored physical product.
Certification and deployment
The packaging solution is certified according to ADR requirement as UN/4H2/Y packaging.
LOKI-TES specifications
Product data for LOKI-TES case studies
The following specifications belong to the cylindrical and prismatic case studies.
| Property | Cylindrical cells | Prismatic cells |
|---|---|---|
| Product image |
|
|

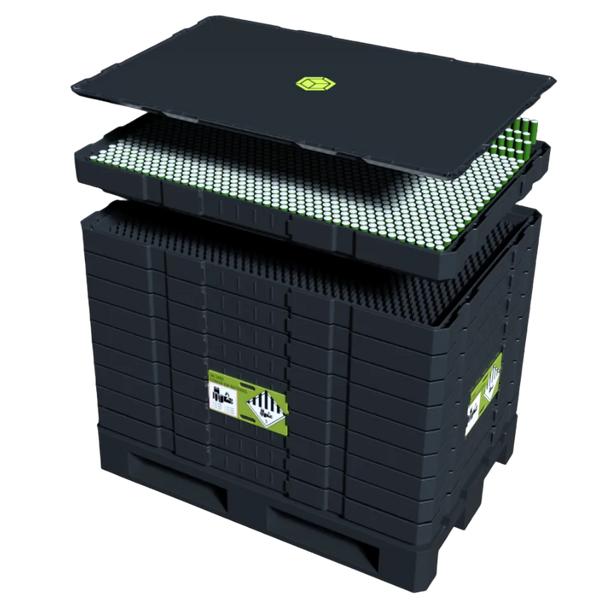

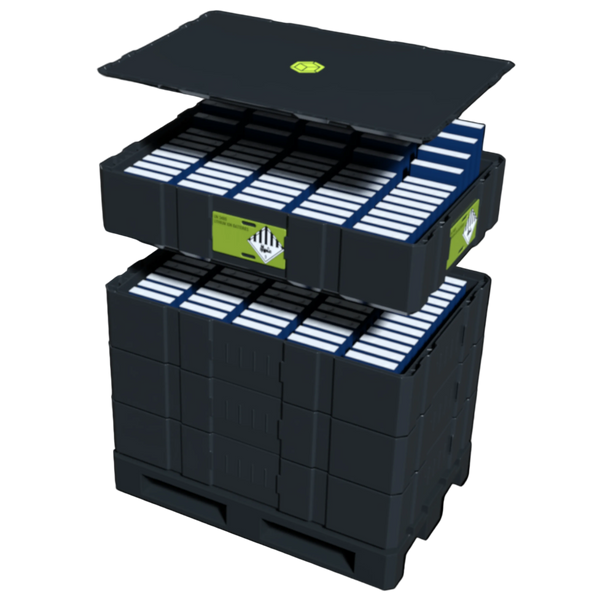

| Battery type | Cylindrical: Ø 21 x 70 mm | Prismatic: 220 x 175 x 36 mm |
| UN code* | UN 4H2/Y912 | UN 4H2/Y820 |
| Outer dimensions | 1200 x 800 x 1002 mm | 1200 x 800 x 1150 mm |
| Layer | 10 | 4 |
| Storage capacity | 12870 | 240 |
| Weight | 140 kg | 100 kg |
| Payload* | 772 kg | 720 kg |
| Material | HDPE | HDPE |
* Subject to official certification
LOKI-Track integration
Add a digital platform to a tailored production flow
LOKI-Track can be considered where asset identity, condition information, status updates, documentation or guided workflows are part of the setup.
01
Condition data
Track temperature, shock and position in real-time.
02
Events and alerts
Get notified in case of emergency or when limits are exceeded.
03
Workflow guidance
Use guided workflows for classification and packaging.
04
Assets and documents
Manage your assets and assign internal or external documents.
LOKI-TES downloads
Technical documents
Documents are released for the relevant configuration and project stage.
Approved downloads pending
Instructions, safety information and evidence documents will be added after approval.
LOKI-TES questions
Questions about the tailored approach
The exact solution is defined from the production context and the project scope.
